Custom CNC Machined Optical Tube Housing Assembly for Laser & Imaging Systems

High-precision aluminum optical housings with modular clamps, black anodized finish, and ±1μm tolerances. Ideal for laser devices, medical imaging, and custom optics.

📦 Product Overview

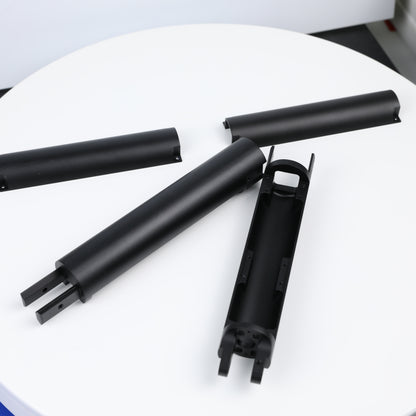

Our precision-machined optical tube assemblies are designed for high-performance applications such as laser collimators, optical sensors, and medical imaging equipment. Each component is CNC milled from aerospace-grade aluminum and finished with a durable black anodized coating to minimize reflection and improve corrosion resistance.

⚙️ Key Features

• Material: 6061-T6 or custom aluminum alloy (also available in stainless steel or titanium)

• Surface Finish: Black anodized, Ra ≤ 0.01 μm

• Tolerances: ±1 μm for critical dimensions

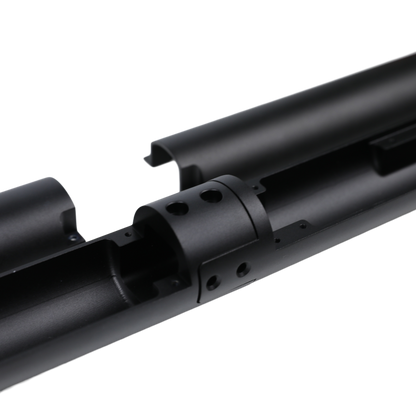

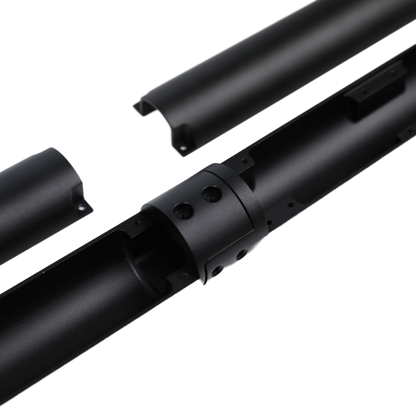

• Modular Design: Multi-piece clamp system for adjustable alignment

• Threaded Ports & Mounting Holes: Compatible with standard lens adapters and sensors

• Lightweight & Rigid: Engineered to maintain structural integrity under vibration

🏥 Application Areas

• Laser collimation and beam alignment systems

• Optical imaging devices and microscopes

• Medical diagnostics and endoscopic equipment

• Custom lens barrels and sensor mounts

• Research lab fixtures and optical test stands

🔧 Manufacturing Capabilities

• 3-axis / 5-axis CNC milling

• EDM for tight-tolerance slots and undercuts

• CMM inspection reports available

• DFM support for complex assemblies

• Small to mid-volume production runs supported

📩 Need a Quote?

We support rapid prototyping and volume production with full material traceability and ISO 13485 certification for medical projects. CAD file submission and design review available.

👉 Contact us now to discuss your optical enclosure needs.
